Wire Electro Discharge Machining
Wire Electro Discharge Machining (EDM) is machining technique used to section intricate patterns in hard specimens that would otherwise be hard to machine with traditional methods. It's ability to achieve a high level of surface finish in components down to a few microns in resolution.
The facility enhances the ability to section samples produced in AMPLab which can then be further analysed by the suite of techniques housed in LMCC allowing us to span the macro to micro scales.
Example applications
- Sectioning of additively manufactured hard materials
- Produces a high surface finish requirement
- Achieves complicated geometry of parts

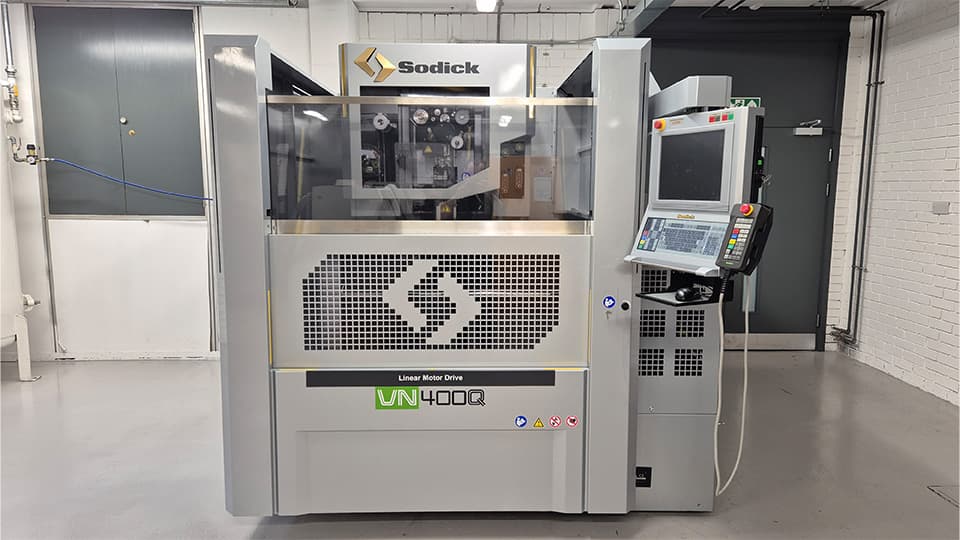

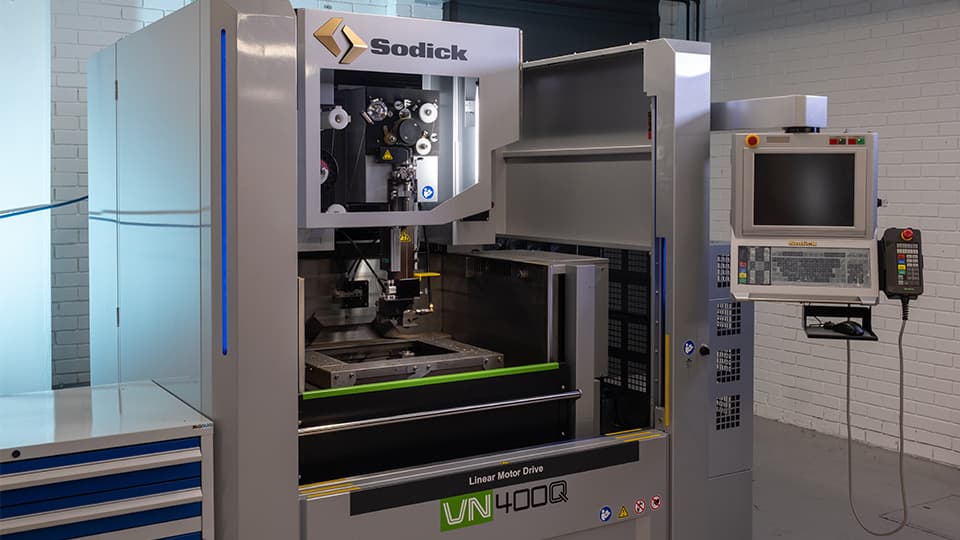

Sodick VN400Q
- X/Y/Z Axis Travel (mm)
- 400 x 300 x 230
- U/V Axis Travel (mm)
- 90 x 90
- Taper Angle
- +-15°
- Wire Diameter (mm)
- 0.1-0.3
- Maximum load (kg)
- 500
Are you interested in using this technique?
If you are interested in using this technique and would like further information please do not hesitate to get in touch.
